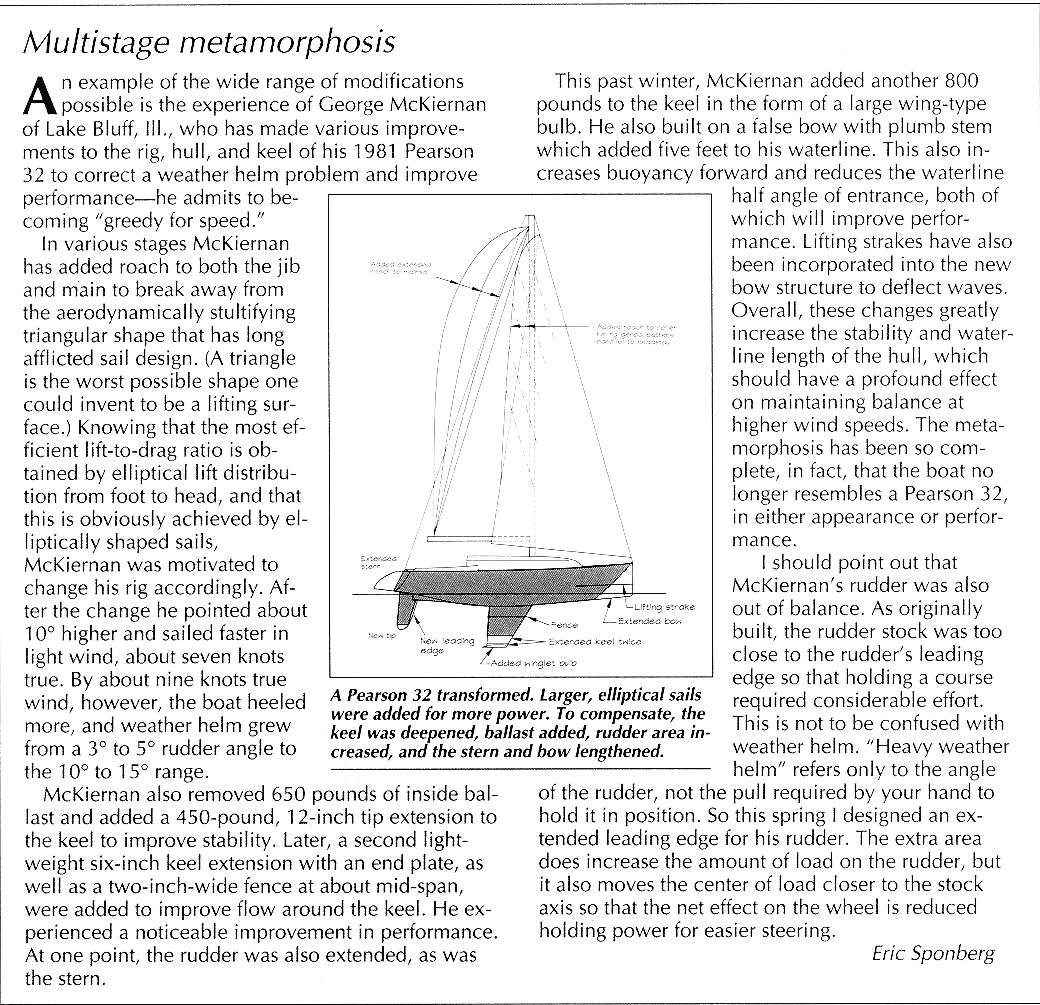

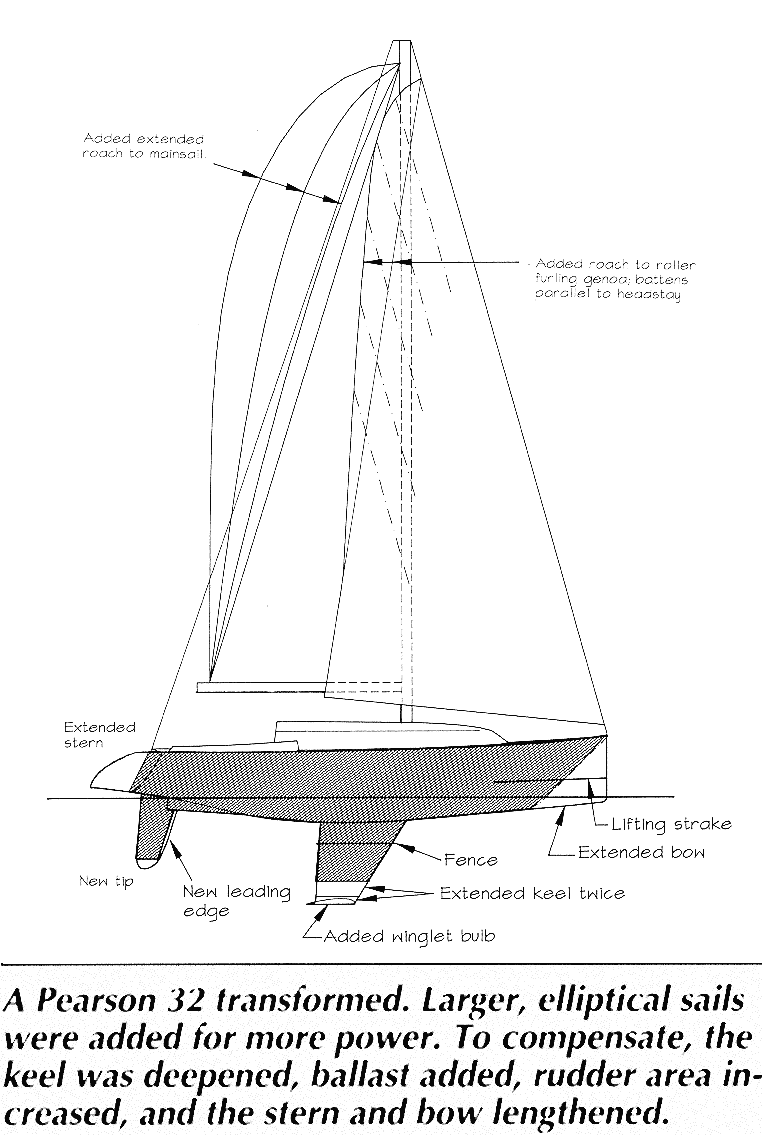

Ocean Navigator article on modified P32 - Sept/Oct 1996 (drawing)

Designer    Shaw   Main Area     208   Hull Speed   6.70
Model #       62   For Tri       266   SA/D         17.0
First Year  1979   I            40.9   D/L           269
Last Year   1982   J            13.0   BR            40%
LOA         31.7   P            35.4   L/B          3.00
LWL         25.0   E            11.8   LWL /B       2.36
Beam        10.6   Eng          A4/D   OR            21%
Disp       9,400   Fuel           19   CSF          2.01
Draft        5.5   Water          38   MCR          23.1
Sail Area    474   Mast Height  44.6   M/F          0.78
Ballast    3,800   # Built       113   PHRF          165
