Pearson 323 Maintenance Notes
|
Return to Pearson Info . . .
| 32
| 323
| Vanguard
Photos and Info
Brochure
Maintenance Notes
Click here if you would like to contribute maintenance info specific to this model.

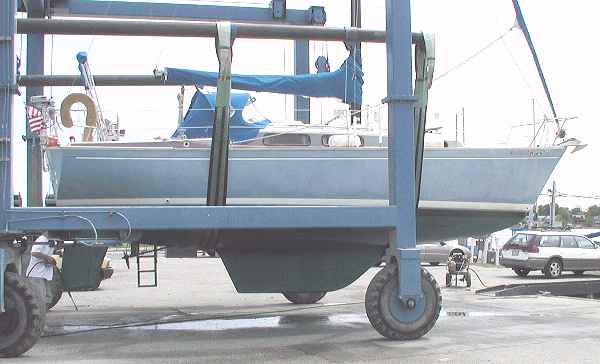

Lift Strap Placement Photo by Alvah Smith
Line drawing from brochure
323 Mast

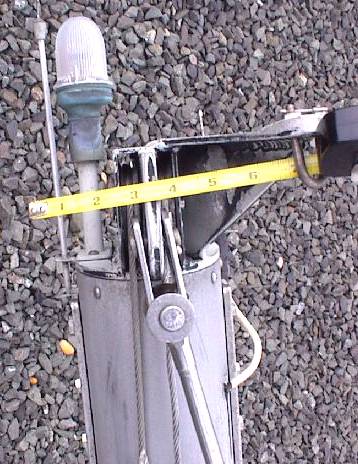

Note that the masthead unit (sheave box) is removable from the top of the extrusion.

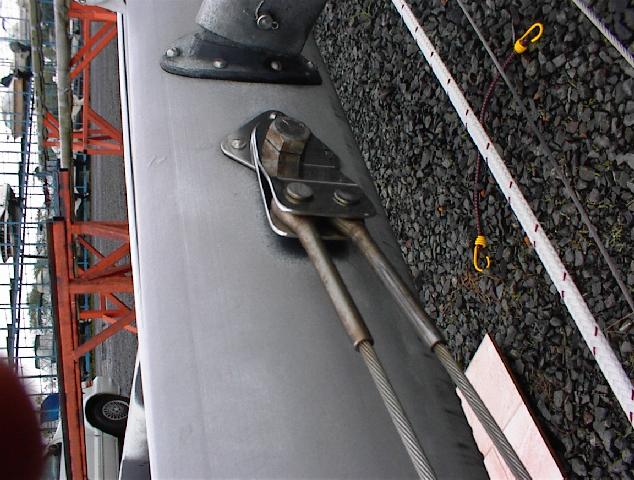

Lower shroud tangs, spreader bases look like 10M

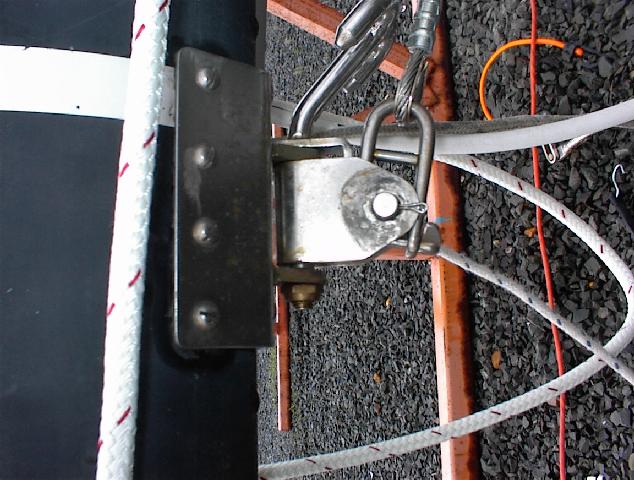

Gooseneck - Same as on 10M

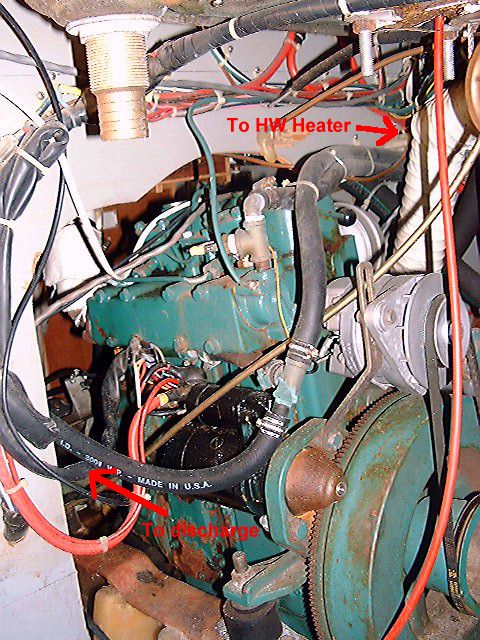

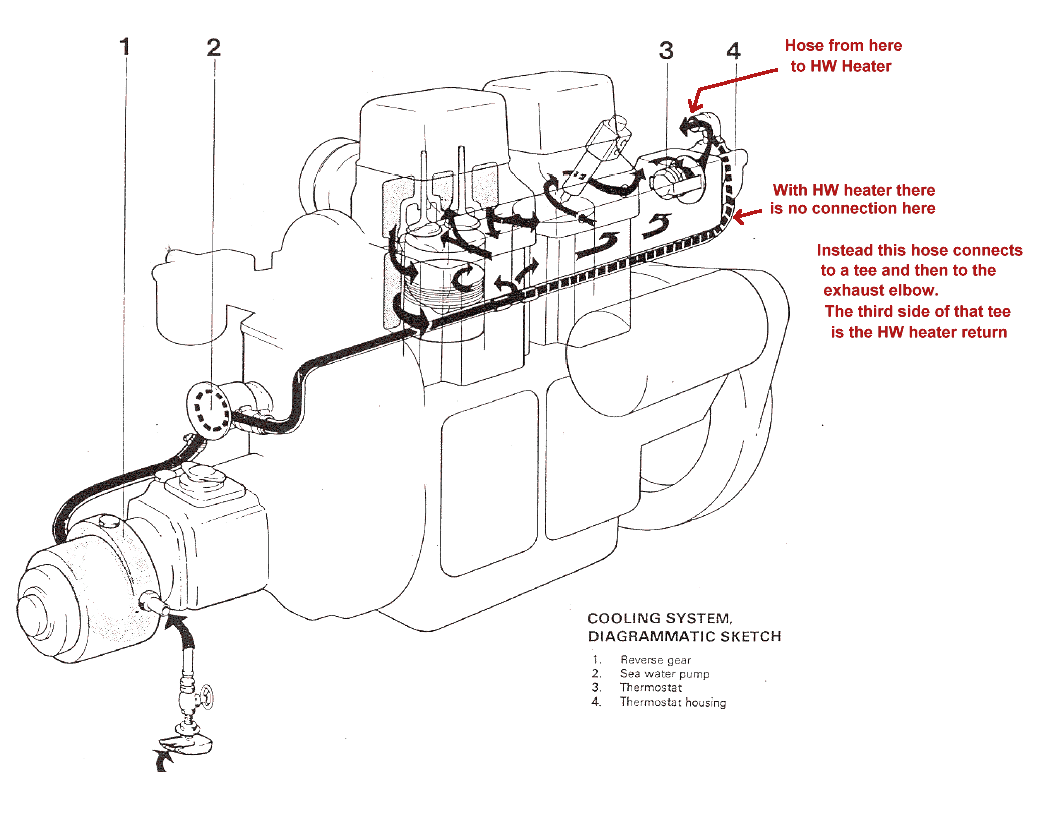

Volvo MD11 Cooling System
The 323 has a very simiular engine installation to the 10M with Volvo MD11 engine. The photo below is from a 10M.

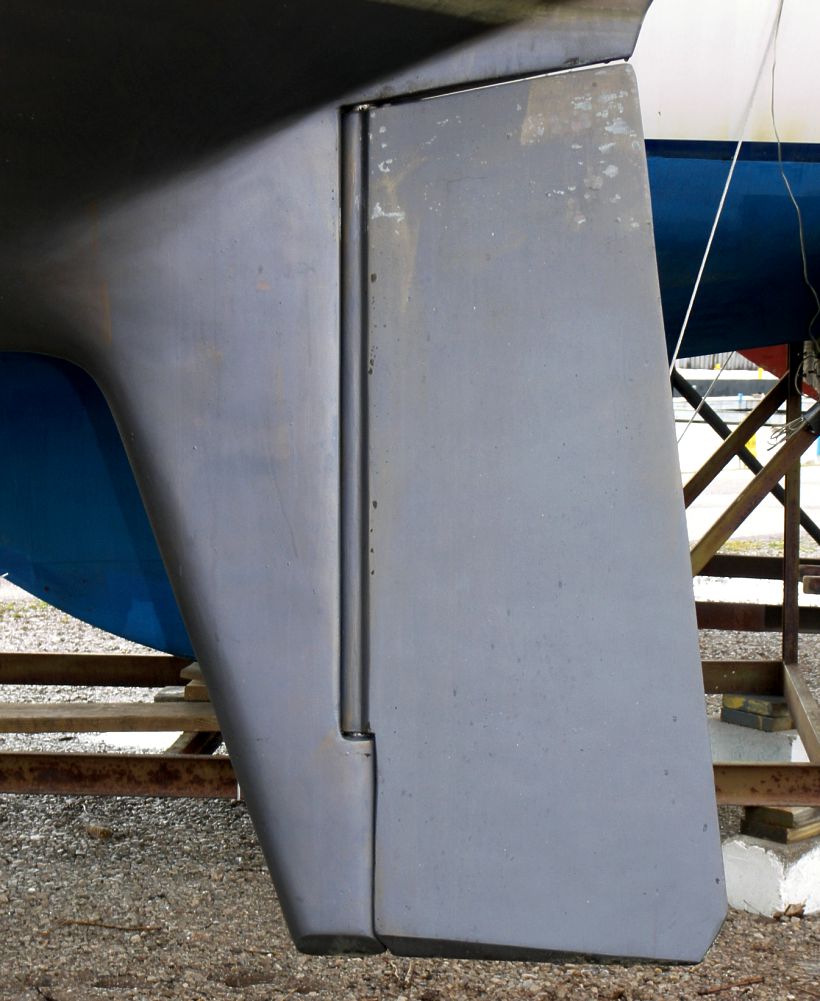

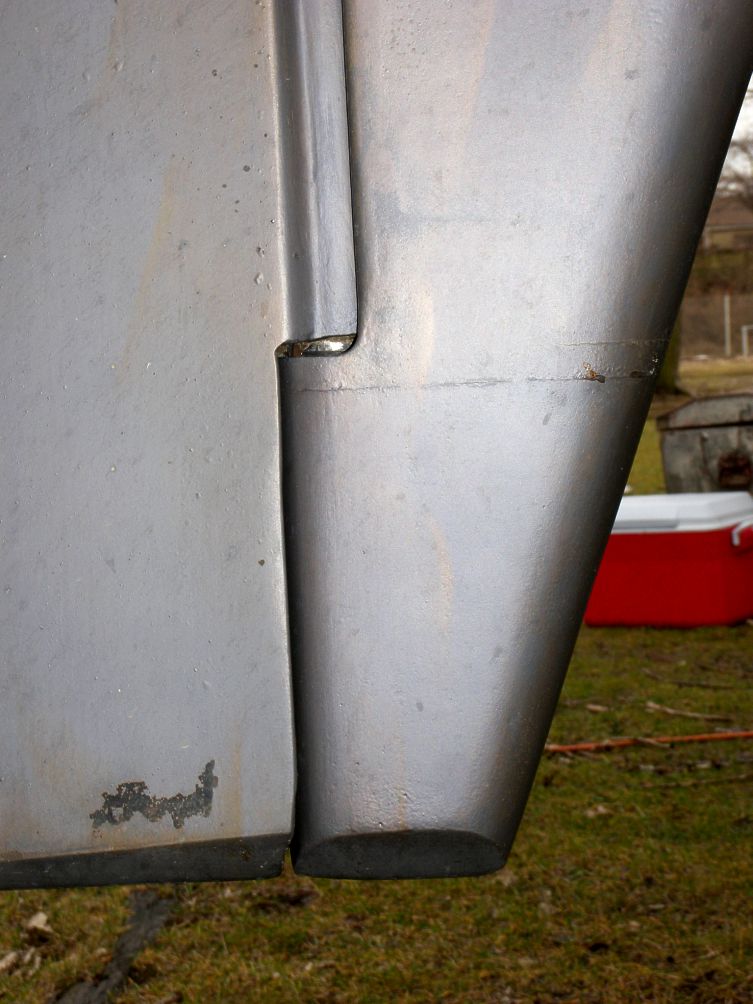

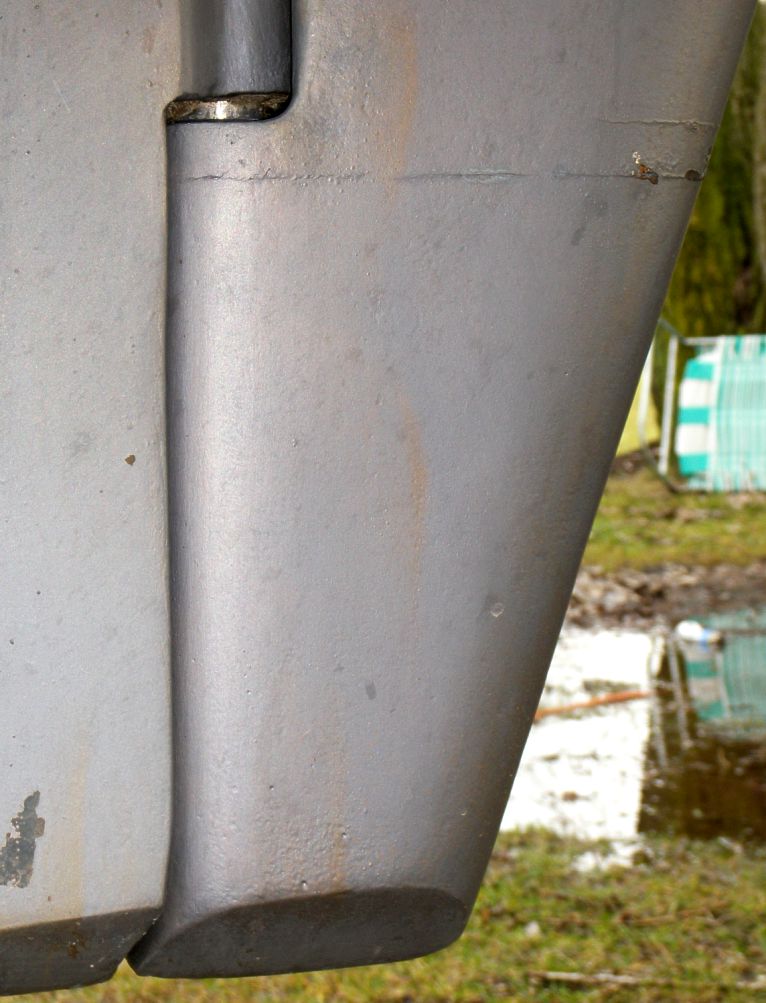

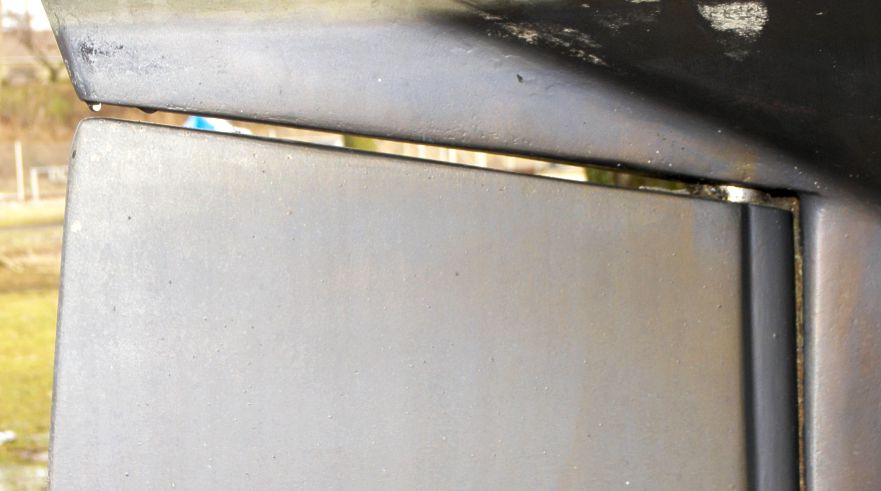

Rudder Details
